Advantages of XCMG XZ450 Plus HDD directional and horizontal drilling

1.Using closed loop circuit and load sensitive control and electro-hydraulic proportional controland a number of advanced control technology. The imported components is reliable in quality;
2. The rackpinionpush and pull, which ensures the stability and the reliability of the transmission of power head operation. Power head floating can greatly protect the drill pipe thread and improve the service life of the drill pipe;
3.Selection of main components of international and domestic first-class form a complete set of hydraulic components manufacturerand improve the reliability of the product;
4.You can choose the optionalpower power head which can double head back to the drag force. We can meet customer’s special requirements;
5.The work station adopts the man-machine engineering design, more comfortable and convenient;
6. Wire-controlwalking ensure the safety of the walking process;
7. Narrow fuselage designand the container transportation can be realized.

Technical specification

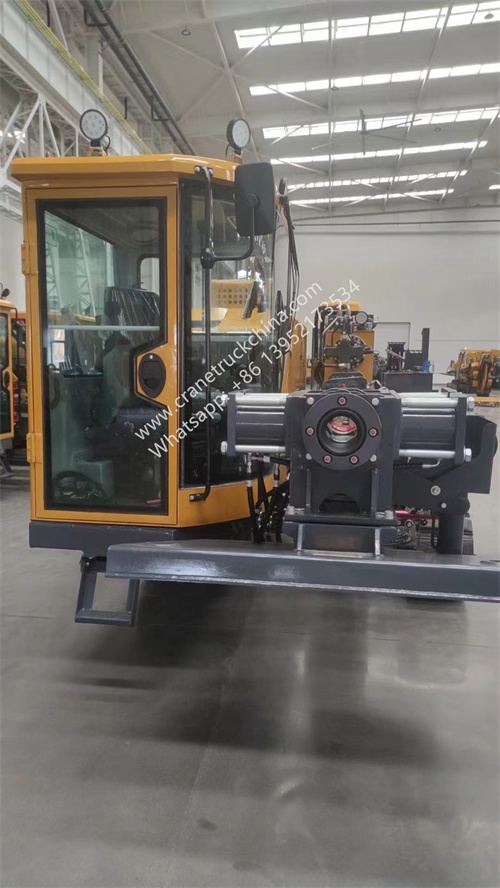

Product model: XCMG XZ450 Plus directional and horizontal drilling
Manufacturer: XCMG GROUP
XCMG XZ450 Plus directional and horizontal drilling is one-piece and full-load type design, which adopts closed loop circuit, liquid pressure pilot control and load sensitive control and a number of advanced control technology and the company’s proprietary technology. The main performance parameters and controlled technology has reached the leading domestic level. Hydraulic system, transmission system, reducer, electric control system and other main components choose the brand name products at home and abroad, whose quality is reliable.

Detailed Specification

I.Introduction of Technology

1.Chassis
XCMG XZ450 PLUS directional and horizontal drilling take the classical H beam structure, the steel tracks, venue with strong adaptability and high reliability. Eaton or Rexroth walking speed reducer have the stable and reliable performance.
Track shoe length                    3125 mm
Track shoe outer width                2250 mm
Track shoe width                    400 mm
Wheel tread                        2580mmCummins
Roller number                      7 piece×2
Walking speed reducer                Eaton JMV047 or Rexroth GFT2120E/30
Driving force                       100kN
Climbing Capacity                   30%
Walking speed                      2.2km/h
Ground pressure                     63kPa
The total quality of work              13.3T
2.The engine system
The Dongfeng Cummins turbo engine. Emissions meet the standards II.
Engine Model                       6CTA8.3-C260
Rated power                        194kW
Maximum engine torque               1135N·m /（1500r/min）
Rated rotor speed                    2200 r/min
Meet the emission standard            China I phase
Fuel tank capacity                    325L
3.The hydraulic system
Rotating adopts closed loop and other functions uses open system and the load sensitive control and electro-hydraulic proportional control and several advanced control technology. The imported components are reliable in quality.
Rotary head rotating system
rotatory pump                       SAUER 90-R-100
Rate of flow                         213L/min
Pressure                            350bar
Motor                              Rexroth A6VM107
Power head push and pull system
Push and pull pumps                  SAUER FR-R-074B+Bomk PT257A
Rate of flow                         260L/min
Pressure                            280bar
Manual reset relay                    SAUER PVG32
Motor                              Huade  A6V107×2
Push and pull rotation handle            JEIL JRCVJ-07-RH
Hydraulic fuel tank capacity             340L
4.Electrical system
Electric system equipped with electric starter key switch, fuse box, power master switch.
For horizontal directional drilling construction technology, application of simple electric line. To optimize the display in the instrument location, easy to observe. The wire-control walking can realize stepless speed regulation, convenient operation. Engine speed, water temperature, oil pressure machine, hydraulic oil temperature, oil filter, power head limit and other alarm parameters can effectively protect and monitor the safety of machine.
System Voltage                      DC24V
5.Drill stand
High strength drill stand can adapt to the 4.5 m drill pipe. Rocker arm oil cylinder and the angle adjustment together achieve greater point of the adjustment of the angle of the grave.
Drill stand Angle adjustment           10～20°
6.Power head
Push pull a drill through the gear rack and complete. Power head effectively protect the pipe screw mandrel floating device Lines. Variable motor can achieve high-speed push and pull. Equipped with push and pull power device, it can multiply the drag force and reduce the risk of workers.
Reduction box                     Bonfiglioli 307L2 / Brevini ED2090
The biggest push pull                450/900kN
The biggest push and pull speed        37m/min
Maximum swivel torque              17000N·m
Maximum rotative speed              135r/min
The maximum stroke power head       5445mm
7.Vice
Rig is equipped with powerful shackle vise.
Shackle torque                      42410N·m
Rear vice rotation Angle              25°
8.The slurrypump system
Equipped with the Hengyang slurry pump, it can provide the powerful and huge slurry and guarantee the construct smoothly.
The maximum flow of slurry           600 L/min
The maximum pressure of slurry        80bar
9.Cab
Option: control cab, adjustable seat, panorama French window, in line with the ergonomics design console, greatly improved the operation of the rig comfort level. The cab is equipped with air conditioning, interior as beacon, wiper, fire extinguishers, safety hammer and other necessary equipment.
Dimension                          1050*1200*1600(mm)
Air conditioning system of cold          4600W
Air conditioning system of heat          5000W
10.Lorry crane
Random configuration 2T XCMG lorry crane and manual operation stable.
Max lifting weight                     2T
The farthest distance operation           5.67m
Max. Lifting Moment                  4T·m
11.Drill pipe and drill tools
Option: integral or welded pipe; Back to the expansion of optional cut expanding type, expanding type, flow channel type or other Special reamer, whose diameter is from 300 mm to 1000 mm. The user also can select other specifications of the short connection, transfer and others according to the requirements of their type. Note: the biggest hole diameter and the construction of the longest distance is associated with specific construction formation.
Drill pipe diameter                  φ89 mm
Drill pipe length                    4500mm

II.The main technical parameters

III.The main parts subsidiary

IV.The whole machine appearance and transportation

Overall dimension                            9265×2250×2610mm
Shipping weight (Don’t include drill pipe, drill)     13.3T

XCMG XZ450 Plus directional and horizontal drilling accessory technical documents

The following technical documents are provided for XZ450 PLUS XCMG directional and horizontal drilling
Certificate of conformity
XCMG XZ450 Plus directional and horizontal drilling operation instructions
Engine operation instructions
Reduction box operation instructions
Slurry pump operation instructions
Packing list( Including the wearing parts and spare parts list, the accessory tools list)
Note: The products will be improved along with the technical advancement and the difference will be defined during ordering.
