One of our costomer order 20 tons lifting capacity XCMG truck mounted crane with HOWO brand chassis.
|
类别 Classify |
项目 Items |
参数Parameters |
|
底 盘 参 数 Chassis Specification |
底盘型号Model of chassis | ZZ1317N4667W |
| 底盘生产厂家Manufacturer | 中国重汽集团国际有限公司 | |
| 整备质量(装上吊机后) kgTotal weight | 22000 | |
| 载质量(装上吊机后) kgLoad capacity | 9000 | |
| 最高车速 km/hMax speed | 90 | |
| 外形尺寸(装上吊机后) mmOverall dimension | 11700×2500×3800 | |
| 车厢尺寸(装上吊机后) mmCarriage dimension | 7500×2300×600 | |
| 驾驶室准乘人数Passengers | 3 | |
| 轴距 mmWheelbase | 2100+4300+1350 | |
| 前/后轮距 mmDistance of front and rear wheels | 2022/1830 | |
| 驱动形式/轴数Drive mode/Number of shafts | 8X4/4 | |
| 接近/离去角 °Approaching angle/Departure angle | 16/19 | |
| 前/后悬 mmFront suspension/Rear suspension | 1500/2450 | |
| 轮胎规格Type of tire | 12.00R20 | |
| Engine Specification发 动 机 参 数 | 发动机型号Model of engine | WD615.47 |
| 发动机功率 Kw/HpPower of engine | 273/370 | |
| 发动机排量 mlEngine output volume | 9726 | |
| 排放标准Exhaust standard | 国II |
|
吊机的参数 Truck with loading crane |
项目ITEM |
单位 UNITS |
Crane model 吊机型号 |
|
SQS500B |
|||
|
最大起重质量 Max lifting capacity |
KG |
20000 |
|
|
最大起重力矩 Max lifting capacity |
T.M |
52 |
|
|
推荐功率 Recommend power |
KW |
57 |
|
|
液压系统最大流量 Max oil flow |
L/MIN |
80+50 |
|
|
液压系统额定压力 Max pressure |
MPA |
28 |
|
|
油箱容积 Oil Tank Capacity |
L |
270 |
|
|
起重机自重 Crane weight |
KG |
7600 |
|
|
安装空间 Installation space |
MM |
1400 |
|
|
回转角度 Rotation angle |
DEGREE |
360 All Rotation |
|
|
最大伸臂长度 Max extension length |
MM |
23700 |
|
|
最大工作高度 Max lifting height |
MM |
25000 |
|
|
最大仰角 Max elevation |
DEGREE |
75 |

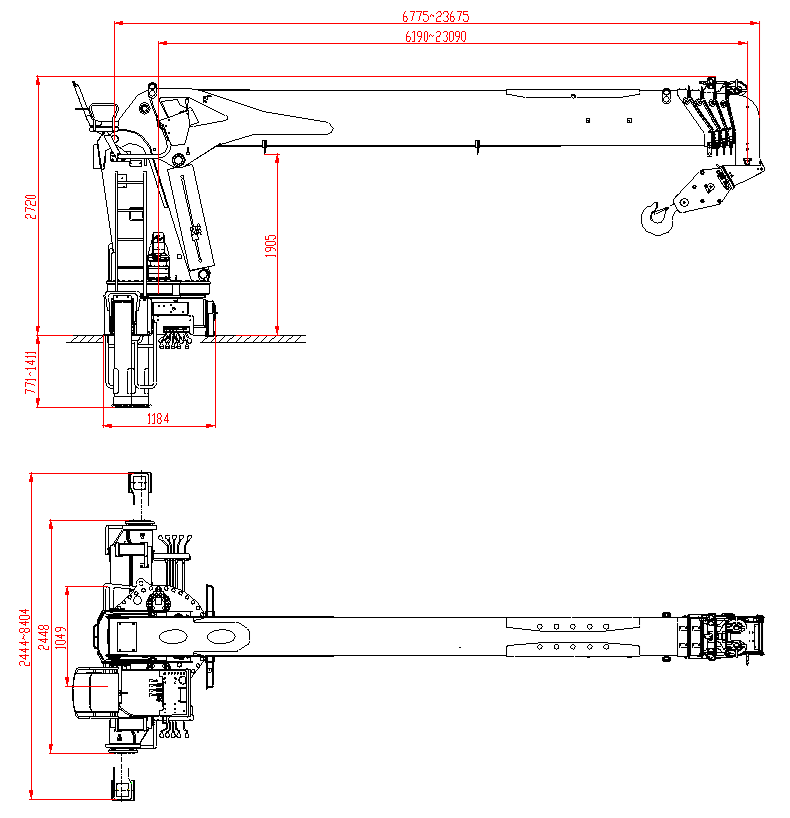

SQS500B
起重性能表
|
SQS500随车起重机起重性能表 |
|||||
|
幅度（m） |
臂架长度（m） |
||||
|
6.78 |
11.1 |
15.3 |
19.5 |
23.7 |
|
|
2.5 |
20000 |
15000 |
|||
|
3.0 |
17000 |
13500 |
|||
|
4.0 |
12800 |
10500 |
8000 |
||
|
5.0 |
10300 |
9000 |
6600 |
5200 |
|
|
6.0 |
8500 |
7800 |
5600 |
4400 |
4000 |
|
7.0 |
8100(6.19) |
6500 |
4800 |
3800 |
3400 |
|
8.0 |
5400 |
4200 |
3300 |
2900 |
|
|
9.0 |
4600 |
3700 |
2980 |
2600 |
|
|
100 |
4200 |
3400 |
2680 |
2400 |
|
|
11.0 |
4000(10.5) |
3100 |
2400 |
2200 |
|
|
12.0 |
2850 |
2200 |
2000 |
||
|
13.0 |
2650 |
2050 |
1820 |
||
|
14.0 |
2450 |
1920 |
1660 |
||
|
15.0 |
2300(14.7) |
1800 |
1540 |
||
|
16.0 |
1700 |
1460 |
|||
|
17.0 |
1600 |
1380 |
|||
|
18.0 |
1500 |
1320 |
|||
|
19.0 |
1400(18.9) |
1250 |
|||
|
20.0 |
1180 |
||||
|
21.0 |
1130 |
||||
|
22.0 |
1070 |
||||
|
23.0 |
1020 |
||||
|
24.0 |
1000(23.1) |
||||
