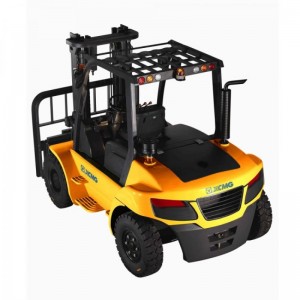

XCMG 6-10T Diesel Forklifts
• Robust and Reliable Diesel Engine(EUIIIB&EPA Engine for choice)
• Ergonomically design
• Wide-view Mast
• Excellent Cooling System and Heat Releasing System
• Cyclone Air Clean
• Vertical Exhaust
• Dual Front Wheels
• Easy to maintain and repair
• Lower Gravity
• Emergency Stop Switch
• Multiple Option Available for Choice
• Available with a range of high performance industrial engine,big torque at low speed,make the whole machine quiet, with less vibration and efficient. Ergonomically design,such as the Long operator assisted grips / two level access entry / Non-slip rubber floor mat / adjustable seat / adjustable tilt steering column,all these provide a comfortable and safe working condition for various operator.
• High efficiency is also delivered through the performance of the axles,the excellent brake system make sure the forklift operate with safety,the steering axle provide prompt and precise feedback to the driver when steering.
|
6T diesel forklifts |
|||||
| Model |
|
FD60T-H |
FD60T-JF |
FD60T-JI |
FD60T-JT |
| Power Type |
|
Diesel |
|||
| Rated Load Capacity |
Q(kg) |
6000 |
|||
| Load Centre |
C(mm) |
600 |
|||
| Rated Lift Height |
H3(mm) |
3000 |
|||
| Free Lift Height |
H2(mm) |
152 |
|||
| Fork Size (L×W×T) |
mm |
1220×150×60 |
|||
| Mast Tilt Angle (F/R, α°/β°) |
deg |
6°/12° |
|||
| Fork Overhang (Wheel Center to Fork Face) |
X1(mm) |
585 |
|||
| Rear Overhang |
X2(mm) |
640 |
|||
| Ground Clearance (Bottom of Mast) |
H7(mm) |
200 |
|||
| Length to Face of Fork (Without Fork) |
L1(mm) |
3510 |
|||
| Overall Width |
B1(mm) |
1995 |
|||
| Mast Lowered Height |
H1(mm) |
2515 |
|||
| Mast Extended Height (With Backrest) |
H4(mm) |
4437 |
|||
| Overhead Guard Height |
H5(mm) |
2415 |
|||
| Turning Radius (Outside) |
Wa(mm) |
3280 |
|||
| Total Weight |
kg |
8640 |
|||
| Battery |
V/Ah |
24/90 |
|||
| Engine Model |
|
6102BG6 |
A-6BG1QC |
QSB4.5 |
TCD3.6 |
| Engine Manufacturer |
|
CHAOCHAI |
ISUZU |
CUMMINS |
DEUTZ |
|
7T diesel forklifts |
|||||
| Model |
|
FD70T-H |
FD70T-JF |
FD70T-JI |
FD70T-JT |
| Power Type |
|
Diesel |
|||
| Rated Load Capacity |
Q(kg) |
7000 |
|||
| Load Centre |
C(mm) |
600 |
|||
| Rated Lift Height |
H3(mm) |
3000 |
|||
| Free Lift Height |
H2(mm) |
152 |
|||
| Fork Size (L×W×T) |
mm |
1220×150×65 |
|||
| Mast Tilt Angle (F/R, α°/β°) |
deg |
6°/12° |
|||
| Fork Overhang (Wheel Center to Fork Face) |
X1(mm) |
585 |
|||
| Rear Overhang |
X2(mm) |
720 |
|||
| Ground Clearance (Bottom of Mast) |
H7(mm) |
200 |
|||
| Length to Face of Fork (Without Fork) |
L1(mm) |
3590 |
|||
| Overall Width |
B1(mm) |
1995 |
|||
| Mast Lowered Height |
H1(mm) |
2615 |
|||
| Mast Extended Height (With Backrest) |
H4(mm) |
4437 |
|||
| Overhead Guard Height |
H5(mm) |
2415 |
|||
| Turning Radius (Outside) |
Wa(mm) |
3360 |
|||
| Min.Aisle width for pallets |
Ast(mm) |
5365 |
|||
| Travel Speed (No Load) |
km/h |
20 |
|||
| Lifting Speed (Full Load) |
mm/sec |
330 |
|||
| Total Weight |
kg |
9350 |
|||
| Battery |
V/Ah |
24/90 |
|||
| Engine Model |
|
6102BG6 |
A-6BG1QC |
QSB4.5 |
TCD3.6 |
| Engine Manufacturer |
|
CHAOCHAI |
ISUZU |
CUMMINS |
DEUTZ |
|
8T diesel forklifts |
|||||
| Model |
|
FD80T-H |
FD80T-JF |
FD80T-JI |
|
| Power Type |
|
Diesel |
|
||
| Rated Load Capacity |
Q(kg) |
8000 |
|
||
| Load Centre |
C(mm) |
600 |
|
||
| Rated Lift Height |
H3(mm) |
3000 |
|
||
| Free Lift Height |
H2(mm) |
120 |
|
||
| Fork Size (L×W×T) |
mm |
1220×175×75 |
|
||
| Mast Tilt Angle (F/R, α°/β°) |
deg |
6°/12° |
|
||
| Fork Overhang (Wheel Center to Fork Face) |
X1(mm) |
721 |
|
||
| Rear Overhang |
X2(mm) |
760 |
|
||
| Ground Clearance (Bottom of Mast) |
H7(mm) |
250 |
|
||
| Length to Face of Fork (Without Fork) |
L1(mm) |
4040 |
|
||
| Overall Width |
B1(mm) |
2165 |
|
||
| Mast Lowered Height |
H1(mm) |
2695 |
|
||
| Mast Extended Height (With Backrest) |
H4(mm) |
4020 |
|
||
| Overhead Guard Height |
H5(mm) |
2520 |
|
||
| Turning Radius (Outside) |
Wa(mm) |
3700 |
|
||
| Travel Speed (No Load) |
km/h |
20 |
|
||
| Lifting Speed (Full Load) |
mm/sec |
380 |
|
||
| Total Weight |
kg |
11850 |
|
||
| Battery |
V/Ah |
24/90 |
|
||
| Engine Model |
|
6102BG6 |
A-6BG1QC |
QSB4.5 |
|
| Engine Manufacturer |
|
CHAOCHAI |
ISUZU |
CUMMINS |
|
|
10T diesel forklifts |
|||||
| Model |
|
FD100T-H |
FD100T-JF |
FD100T-JI |
FD100T-JT |
| Power Type |
|
Diesel |
|||
| Rated Load Capacity |
Q(kg) |
10000 |
|||
| Load Centre |
C(mm) |
600 |
|||
| Rated Lift Height |
H3(mm) |
3000 |
|||
| Free Lift Height |
H2(mm) |
120 |
|||
| Fork Size (L×W×T) |
mm |
1220×175×80 |
|||
| Mast Tilt Angle (F/R, α°/β°) |
deg |
6°/12° |
|||
| Fork Overhang (Wheel Center to Fork Face) |
X1(mm) |
721 |
|||
| Rear Overhang |
X2(mm) |
760 |
|||
| Ground Clearance (Bottom of Mast) |
H7(mm) |
250 |
|||
Welcome to contact us to get more information of parameter and pictures.
We will quote you with our best prices, waiting for your inquiry!
